Upgrading an application

When a new version of JHipster is released, the JHipster upgrade sub-generator helps upgrading an existing application to this new version, without erasing your changes.

This is helpful to:

  • Have the latest JHipster features in an existing application
  • Get the changes when there is an important bug fix or security update
  • Retain your changes in your codebase, and easily merge them with newly generated code

Please read this page carefully before doing an upgrade, to understand how the upgrade process works

Requirements

For this sub-generator to work you need to have git installed from http://git-scm.com.

Running the upgrade sub-generator

Go into the application’s root directory:

cd myapplication/

To upgrade your application, type:

jhipster upgrade

Here are the options you can pass:

  • --verbose - Log each step of the upgrade process in detail
  • --target-version=4.2.0 - Upgrade to the target version instead of the latest release, useful if a project is several versions behind
  • --force - Run the upgrade sub-generator even if no new JHipster version is available

Graphical view of the upgrade process

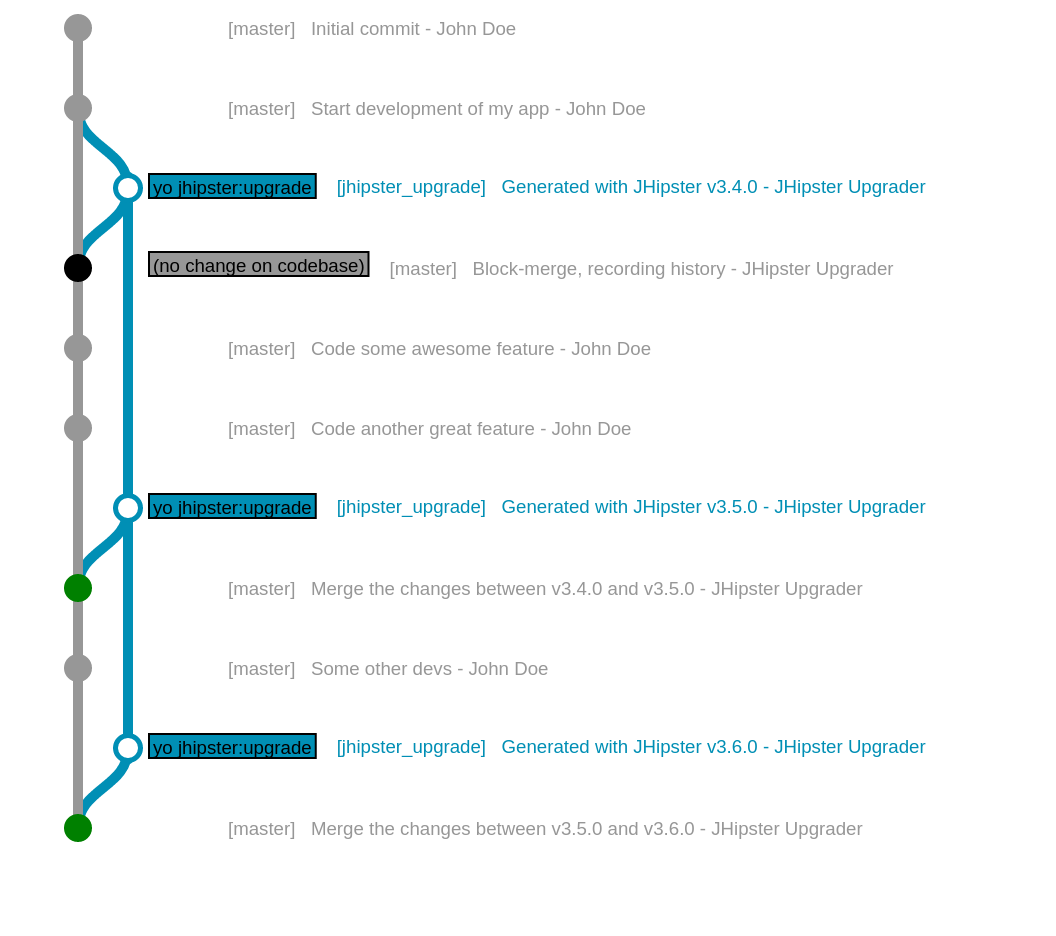

Here is how the upgrade process works graphically (read the sections below to have a textual explanation):

GitGraph

(this image comes from JSFiddle )

Please note that the jhipster_upgrade branch will be created orphan on your project, although it doesn’t display correctly on the above graph.

Step-by-step explanation of the upgrade process

Below are the steps processed by the JHipster upgrade sub-generator:

  1. Check if there is a new version of JHipster available (not applicable if you are using --force).
  2. Check if the application is already initialized as a git repository, or else JHipster will initialize one for you and commit the current codebase to the master branch.
  3. Check to ensure that there are no un-committed local changes in the repository. The process will exit if there are un-committed changes found.
  4. Check if a jhipster_upgrade branch exists. If not, a branch is created: details about this step is provided in the “Specific steps executed on first upgrade” section.
  5. Checkout the jhipster_upgrade branch.
  6. Upgrade JHipster to the latest available version globally.
  7. Clean the current project directory.
  8. Re-generate the application using the jhipster --force --with-entities command.
  9. Commit the generated code to the jhipster_upgrade branch.
  10. Merge the jhipster_upgrade branch back to the original branch from where the jhipster upgrade command was launched.
  11. Now you just need to proceed with resolving merge conflicts if there are any.

Congratulations, your application is now upgraded with the latest version of JHipster!

Specific steps executed on first upgrade

On the first execution of the JHipster upgrade sub-generator, in order to avoid erasing all your changes, some additional steps are run:

  1. A jhipster_upgrade branch is created orphan (it has no parent)
  2. The whole application is generated (using your current JHipster version).
  3. A block-merge commit is made on the master branch: no alteration is made on your codebase on the master branch; this is just a practical way to record in Git that the HEAD of master is up-to-date with the current JHipster version.

Advice

Don’t commit anything on the jhipster_upgrade branch. This branch is dedicated to the JHipster upgrade sub-generator: each time the sub-generator is run, a new commit will be created.
