Upgrading an application Permalink to " Upgrading an application"

Summary Permalink to "Summary"

Option 1 - automatic upgrade
Option 2 - manual upgrade

Option 1 - automatic upgrade Permalink to "Option 1 - automatic upgrade"

When a new version of JHipster is released, the JHipster upgrade sub-generator helps upgrading an existing application to this new version, without erasing your changes.

This is helpful to:

Have the latest JHipster features in an existing application
Get the changes when there is an important bug fix or security update
Retain your changes in your codebase, and merge them with newly generated code

Please read this page carefully before doing an upgrade, to understand how the upgrade process works

Requirements Permalink to "Requirements"

For this sub-generator to work you need to have git installed from http://git-scm.com.

Running the upgrade sub-generator Permalink to "Running the upgrade sub-generator"

Go into the application’s root directory:

cd myapplication/

To upgrade your application, type:

npx jhipster upgrade

Here are the options you can pass:

--verbose - Log each step of the upgrade process in detail
--target-version 6.6.0 - Upgrade to the target version of JHipster instead of the latest release, useful if a project is several versions behind
--target-blueprint-versions [email protected],[email protected] - Upgrade to the target blueprints version instead of the latest release of each blueprint. The target version of a blueprint should however be compatible with the target JHipster version.
--force - Run the upgrade sub-generator even if no new JHipster version is available
--skip-checks - Disable checks during project regeneration
--skip-install - Skips installing dependencies during the upgrade process
--silent - Hides output of the generation process

If you are doing the upgrade more than once you could consider to first upgrade the JHipster tree like this:

git checkout jhipster_upgrade
git checkout --patch master .yo-rc.json
git checkout --patch master .jhipster
git commit -a
git push --set-upstream origin jhipster_upgrade
git checkout master

With doing the above you upgrade the jhipster_upgrade tree with your latest changes so JHipster can make use of that during the upgrade. For example when you changed your model.

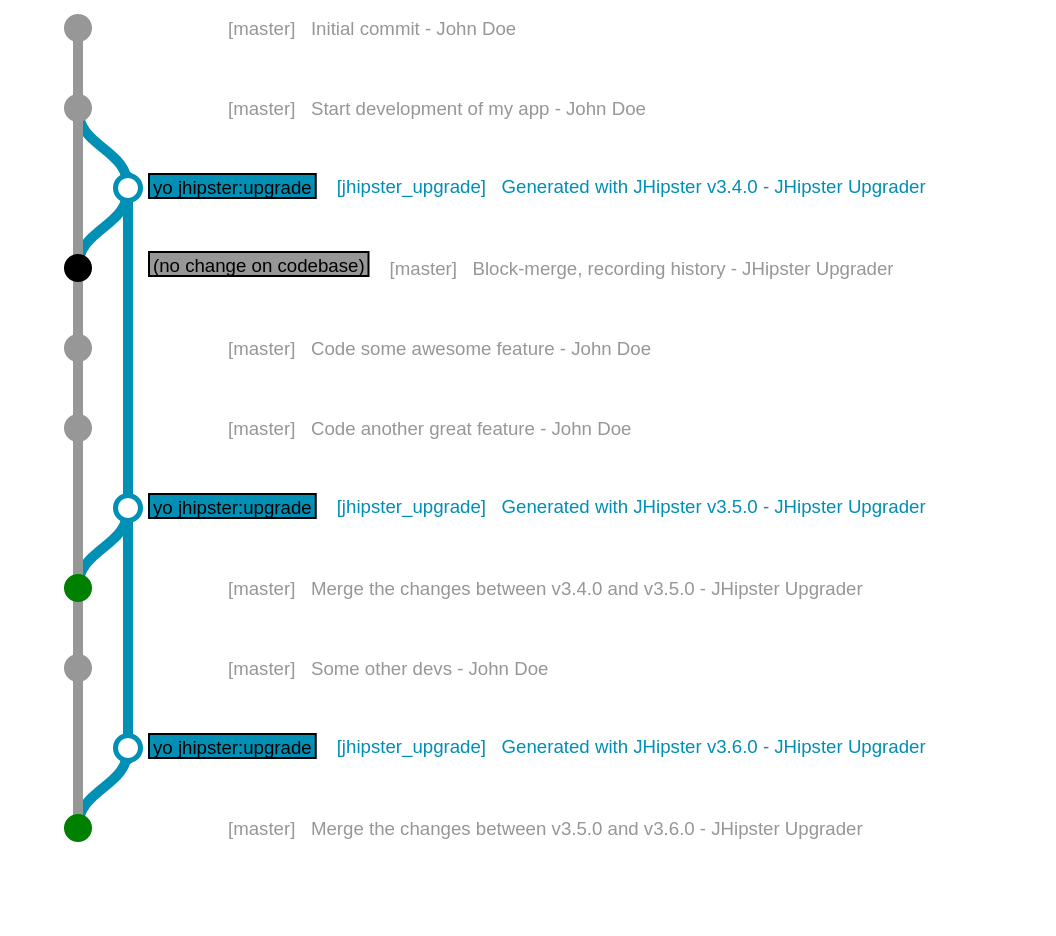

Graphical view of the upgrade process Permalink to "Graphical view of the upgrade process"

Here is how the upgrade process works graphically (read the sections below to have a textual explanation):

GitGraph

(this image comes from JSFiddle )

Please note that the jhipster_upgrade branch will be created orphan on your project, although it doesn’t display correctly on the above graph.

Step-by-step explanation of the upgrade process Permalink to "Step-by-step explanation of the upgrade process"

Below are the steps processed by the JHipster upgrade sub-generator:

Check if there is a new version of JHipster available (not applicable if you are using --force).
Check if the application is already initialized as a git repository, or else JHipster will initialize one for you and commit the current codebase to the master branch.
Check to ensure that there are no un-committed local changes in the repository. The process will exit if there are un-committed changes found.
Check if a jhipster_upgrade branch exists. If not, a branch is created: details about this step is provided in the “Specific steps on first upgrade” section.
Checkout the jhipster_upgrade branch.
Upgrade JHipster to the latest available version globally.
Clean the current project directory.
Re-generate the application using the jhipster --force command.
Commit the generated code to the jhipster_upgrade branch.
Merge the jhipster_upgrade branch back to the original branch from where the npx jhipster upgrade command was launched.
Now you need to proceed with resolving merge conflicts if there are any.

Congratulations, your application is now upgraded with the latest version of JHipster!

Specific steps on first upgrade Permalink to "Specific steps on first upgrade"

On the first run of the JHipster upgrade sub-generator, in order to avoid erasing all your changes, some additional steps are run:

A jhipster_upgrade branch is created orphan (it has no parent).
The whole application is generated (using your current JHipster version).
A block-merge commit is made on the master branch: no alteration is made on your codebase on the master branch; this is a practical way to record in Git that the HEAD of master is up-to-date with the current JHipster version.

Advice Permalink to "Advice"

Don’t commit anything on the jhipster_upgrade branch. This branch is dedicated to the JHipster upgrade sub-generator: each time the sub-generator is run, a new commit will be created.
If you are updating from a very old version (example from 5.0.0 to latest) we suggest updating gradually between each minor/patch version and performing tests to make sure the application works as expected.
There are some helpful approaches from the JHipster community around designing the application in such a way that makes the update process easier, and reduces the amount of merge conflicts. We recommend using JHipster Side-by-Side approach.

Option 2 - manual upgrade Permalink to "Option 2 - manual upgrade"

For a manual upgrade, first upgrade your version of JHipster with:

npm install -g generator-jhipster

Delete your project node_modules folder and then run:

jhipster

You can also update your project and all its entities by running

jhipster --force

You can also update your entities one-by-one by running again the entity sub-generator, for example if your entity is named Foo

jhipster entity Foo

Hints about renamed files Permalink to "Hints about renamed files"

Sometimes files may be renamed in the generator. If you want to see Git rename detection result then you can run git add (git add . stages all) and view changes after that with your favorite Git client.

If many files are renamed then you may want to increase diff.renameLimit in Git config to make Git rename detection work as expected. For example git config --replace-all diff.renameLimit 10000.

By default Git rename detection uses similarity threshold 50%. To see less similar files as renamed, you can use option --find-renames=<n> in Git commands. For example git diff --staged --find-renames=30.

See your own changes Permalink to "See your own changes"

If you would like to see changes you have done after generating project you can follow the steps described below.

Clone your project into the new folder with git clone.

Delete all files and folders from cloned project except .git, .jhipster and .yo-rc.json.

Find out what JHipster version you used last time to generate your project: look at the .yo-rc.json in the project root folder, find out the value of the jhipsterVersion.

Install JHipster version you used last time you generated your project:

npm install -g generator-jhipster@jhipsterVersionYouUsedLastTime

Regenerate your project:

jhipster --force --skip-install

With git diff you can now see all your changes as reverted. If you would like to see all your changes as added then you can commit all to Git and then revert the last commit.

See JHipster changes Permalink to "See JHipster changes"

If you would like to see changes done by JHipster you can follow the steps described below.

Generate project with JHipster version you used last time to generate your project:

create a new folder
copy your project .yo-rc.json file and .jhipster folder into this new folder
find out what JHipster version you used last time to generate your project: look at the .yo-rc.json, find out the value of the jhipsterVersion
install JHipster version you used last time to generate your project: npm install -g generator-jhipster@jhipsterVersionYouUsedLastTime
in the created folder run: jhipster --skip-install

Generate project with the latest JHipster:

create a new folder
copy your project .yo-rc.json file and .jhipster folder into this new folder
install the latest JHipster version: npm install -g generator-jhipster
in the created folder run: jhipster --skip-install

Compare those 2 folders with your favorite file and folder compare tool to see changes done by JHipster.
